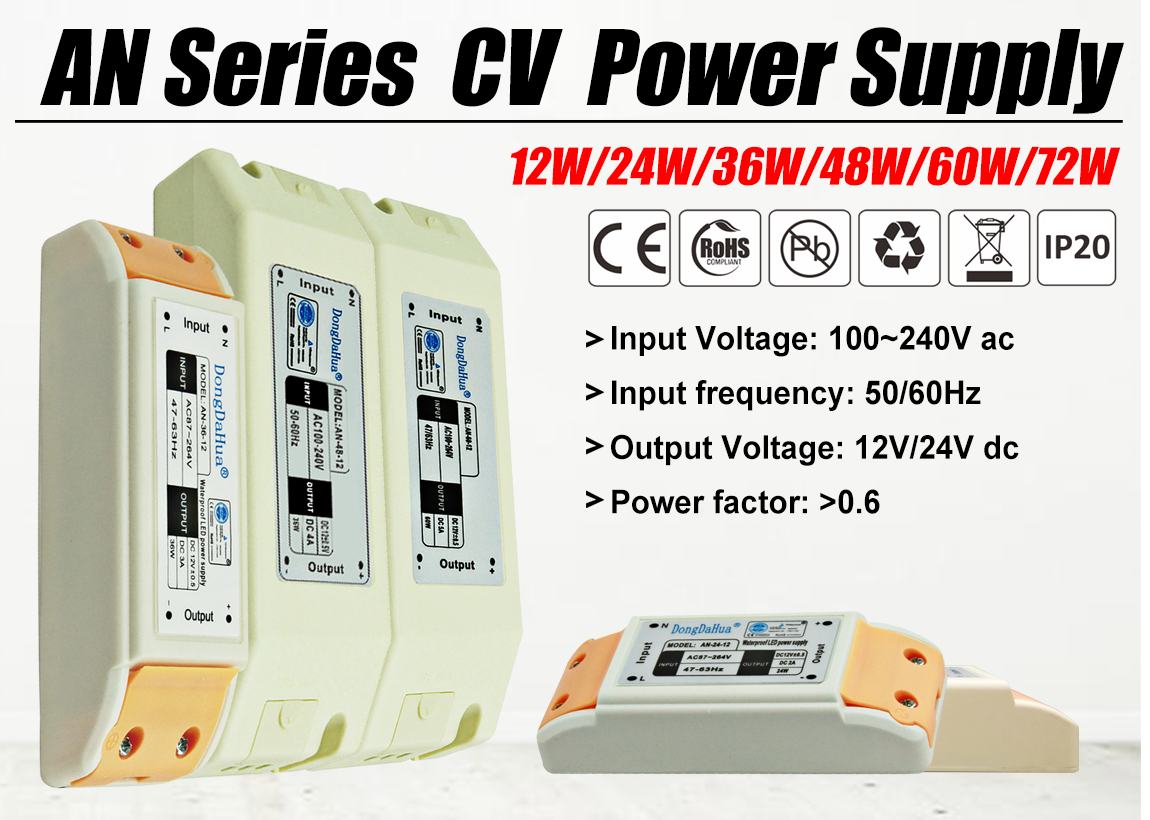

Model | Output power | Output voltage | Output current | Outline size | Efficiency | Safe approval |
AN-12-12 | 12W | 12V | 1A | 95*45*28mm | 80% | CE |
AN-24-12 | 24W | 12V | 2A | 115*45*28mm | 80% | CE |
AN-36-12 | 36W | 12V | 3A | 140*45*28mm | 80% | CE |
AN-48-12 | 48W | 12V | 4A | 157*48*32mm | 80% | CE |
AN-60-12 | 60W | 12V | 5A | 157*48*32mm | 80% | CE |
AN-72-12 | 72W | 12V | 6A | 192*65*38mm | 80% | CE |
Input voltage | 100V-240V | | Lifetime | >3Years |
Input frequency | 50-60Hz | | Waterproof grade | IP20 |
In-rush current | Cold boot:230V 40A | | Working temperature | -35℃~+55℃ |
Power factor | 0.5 | | Storage temperature | -40℃~+85℃ |
Ripple & Noise | 150mV | | Working relative humidity | 10%-100% |

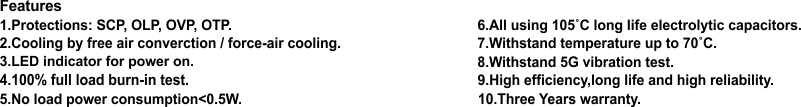

Protection | OLP SCP OVP OTP | | Storage relative humidity | 5%-95% |
Model | Output power | Output voltage | Output current | Outline size | Efficiency | Safe approval |
AN-12-12 | 12W | 12V | 1A | 95*45*28mm | 80% | CE |
AN-24-12 | 24W | 12V | 2A | 115*45*28mm | 80% | CE |
AN-36-12 | 36W | 12V | 3A | 140*45*28mm | 80% | CE |
AN-48-12 | 48W | 12V | 4A | 157*48*32mm | 80% | CE |
AN-60-12 | 60W | 12V | 5A | 157*48*32mm | 80% | CE |
AN-72-12 | 72W | 12V | 6A | 192*65*38mm | 80% | CE |
Input voltage | 100V-240V | | Lifetime | >3Years |
Input frequency | 50-60Hz | | Waterproof grade | IP20 |
In-rush current | Cold boot:230V 40A | | Working temperature | -35℃~+55℃ |
Power factor | 0.5 | | Storage temperature | -40℃~+85℃ |
Ripple & Noise | 150mV | | Working relative humidity | 10%-100% |
Protection | OLP SCP OVP OTP | | Storage relative humidity | 5%-95% |
