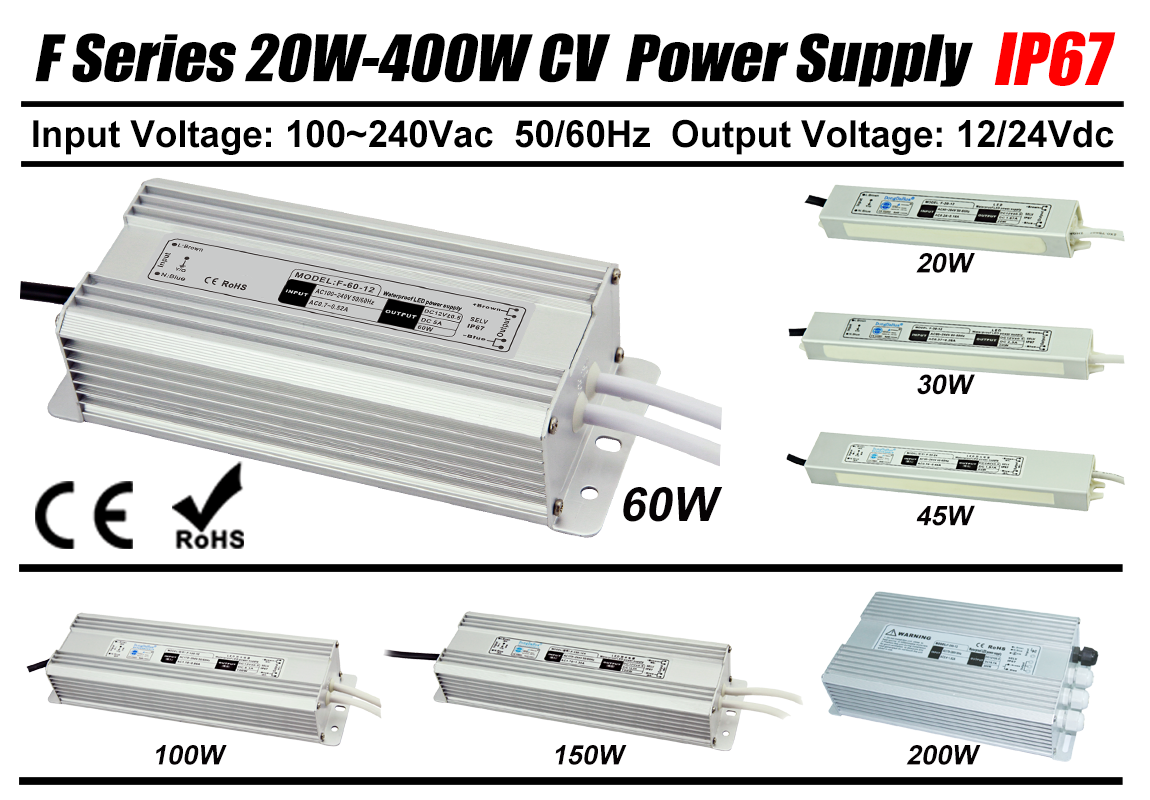

F Series 150W LED Power Supply

F Series
  • 150W

  • DongDaHua

  • 8504401405

Quantity:

4-0-6
Model & Key Parameters
         Model        Output power  Output voltage  Output current Outline size Efficiency  Safe approval
 F-150-12  150W 12V 12.5A 248*72*45mm 85% CE
F-200-12 200W 12V 16.6A 232*120*53mm 85% CE
F-300-12 300W 12V 25A 232*120*53mm 83% CE
F-400-12 400W 12V 33.3A 232*120*53mm 83% CE
Electrical Features
    Input voltage   100V-240V
   Lifetime   >3Years
    Input frequency   50-60Hz
   Waterproof grade   IP67
    In-rush current   Cold boot:230V 20A
   Working temperature   -20℃~+50℃
    Power factor   0.6
   Storage temperature   -40℃~+85℃
    Ripple & Noise   ≤Vout x 1%
   Working relative humidity   10%-100%
    Protection   OLP  SCP  OVP  OTP
   Storage relative humidity   5%-95%
未标题-1
