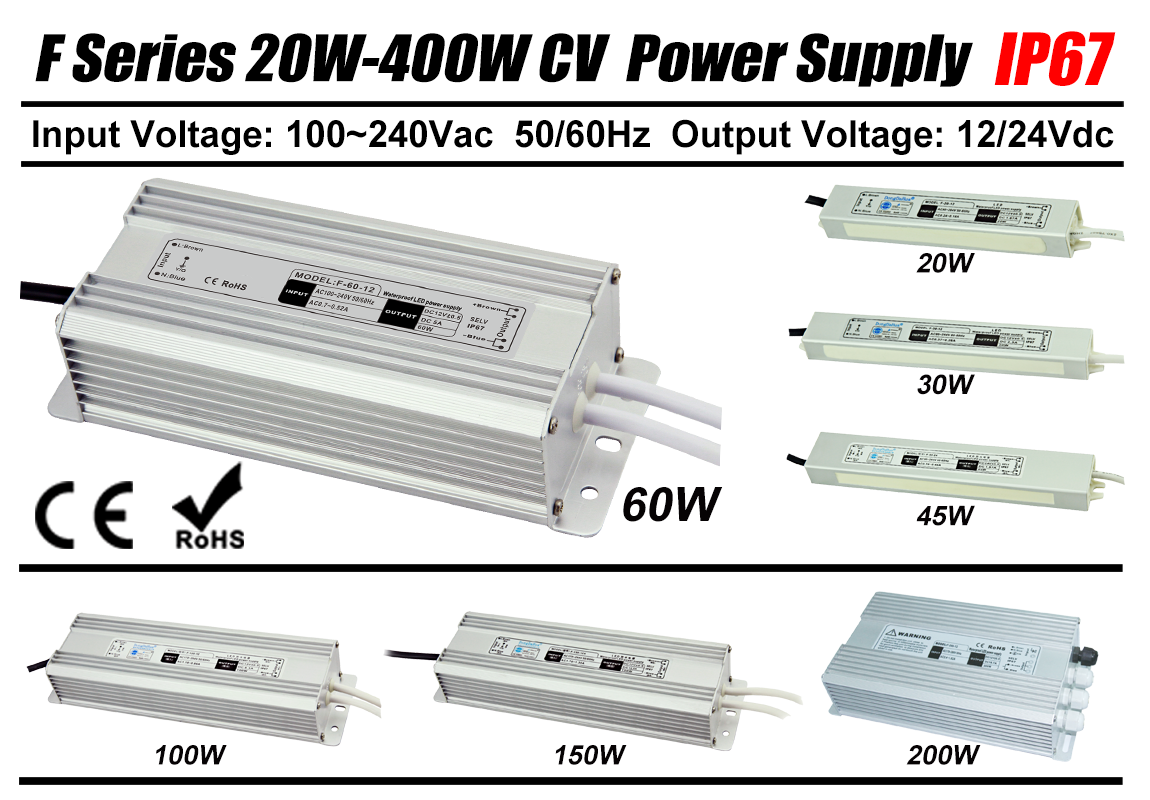

Model | Output power | Output voltage | Output current | Outline size | Efficiency | Safe approval |
F-150-12 | 150W | 12V | 12.5A | 248*72*45mm | 85% | CE |
F-200-12 | 200W | 12V | 16.6A | 232*120*53mm | 85% | CE |
F-300-12 | 300W | 12V | 25A | 232*120*53mm | 83% | CE |
F-400-12 | 400W | 12V | 33.3A | 232*120*53mm | 83% | CE |
Input voltage | 100V-240V | | Lifetime | >3Years |
Input frequency | 50-60Hz | | Waterproof grade | IP67 |
In-rush current | Cold boot:230V 20A | | Working temperature | -20℃~+50℃ |
Power factor | 0.6 | | Storage temperature | -40℃~+85℃ |
Ripple & Noise | ≤Vout x 1% | | Working relative humidity | 10%-100% |
Protection | OLP SCP OVP OTP | | Storage relative humidity | 5%-95% |
Model | Output power | Output voltage | Output current | Outline size | Efficiency | Safe approval |
F-150-12 | 150W | 12V | 12.5A | 248*72*45mm | 85% | CE |
F-200-12 | 200W | 12V | 16.6A | 232*120*53mm | 85% | CE |
F-300-12 | 300W | 12V | 25A | 232*120*53mm | 83% | CE |
F-400-12 | 400W | 12V | 33.3A | 232*120*53mm | 83% | CE |
Input voltage | 100V-240V | | Lifetime | >3Years |
Input frequency | 50-60Hz | | Waterproof grade | IP67 |
In-rush current | Cold boot:230V 20A | | Working temperature | -20℃~+50℃ |
Power factor | 0.6 | | Storage temperature | -40℃~+85℃ |
Ripple & Noise | ≤Vout x 1% | | Working relative humidity | 10%-100% |
Protection | OLP SCP OVP OTP | | Storage relative humidity | 5%-95% |
