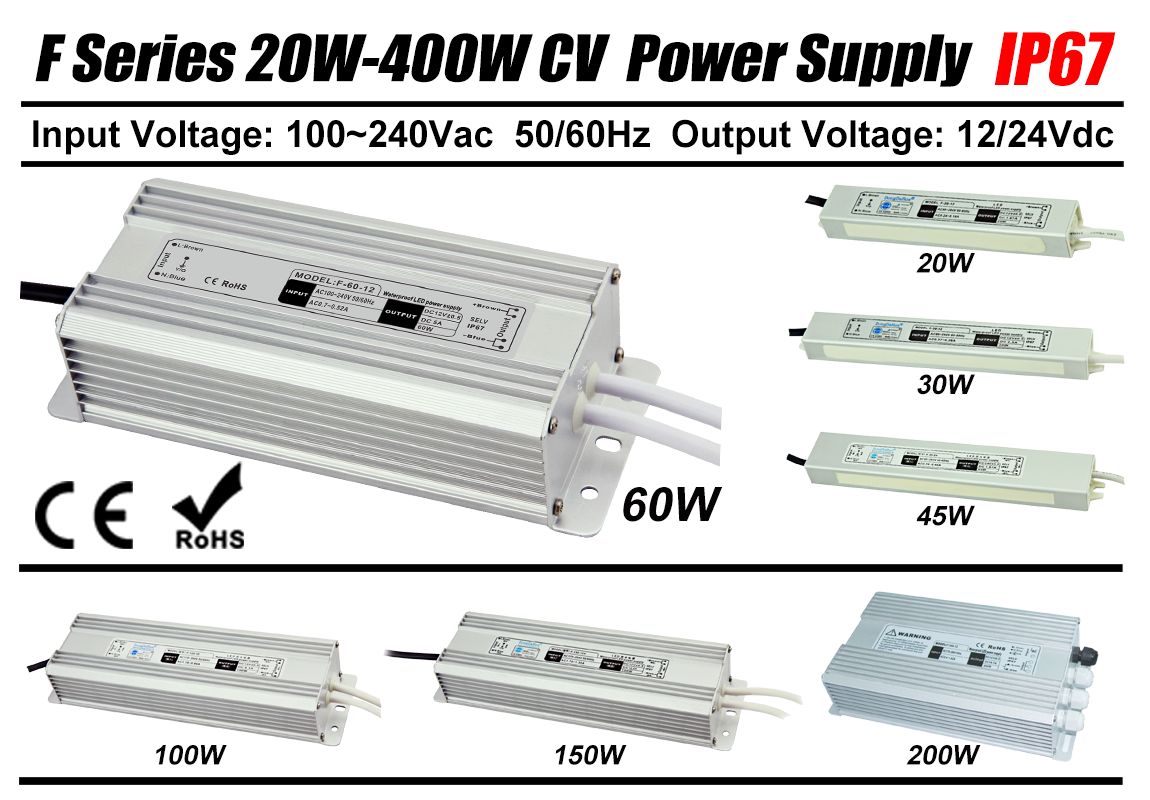

F Series 60W LED Power Supply

F Series
  • 60W

  • DongDaHua

  • 8504401405

Quantity:

4-0-6
Model & Key Parameters
         Model        Output power  Output voltage  Output current Outline size Efficiency  Safe approval
F-15-12  15W 12V 1.25A 142*30*20mm 82% CE
F-20-12 20W 12V 1.6A 181*30*20mm 82% CE
F-30-12 30W 12V 2.5A 221*30*20mm 83% CE
F-45-12 45W 12V 3.75A 251*40*22mm 82% CE
F-60-12 60W 12V 5A 180*72*45mm 83% CE
F-100-12 100W 12V 8.3A 248*72*45mm 85% CE
Electrical Features
    Input voltage   100V-240V
   Lifetime   >3Years
    Input frequency   50-60Hz
   Waterproof grade   IP67
    In-rush current   Cold boot:230V 20A
   Working temperature   -20℃~+50℃
    Power factor   0.6
   Storage temperature   -40℃~+85℃
    Ripple & Noise   ≤Vout x 1%
   Working relative humidity   10%-100%
    Protection   OLP  SCP  OVP  OTP
   Storage relative humidity   5%-95%
