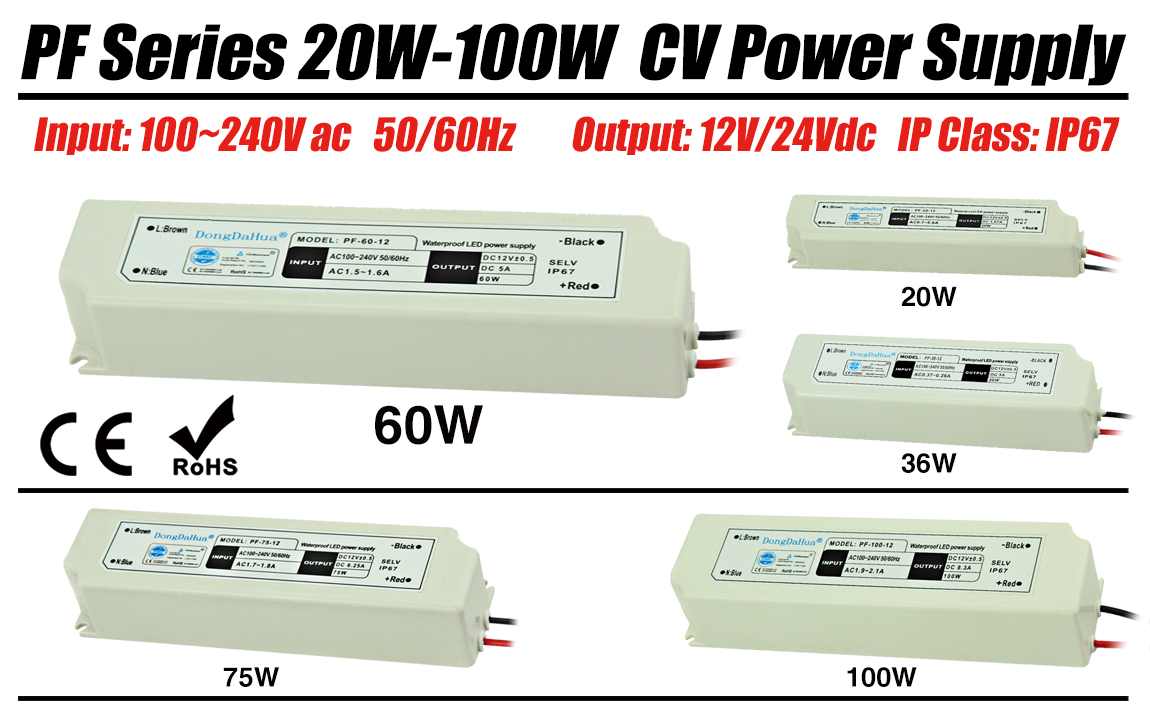

PF Series 100W LED Power Supply

PF Series
  • 100W

  • DongDaHua

  • 8504401402

Quantity:

4-0-6
Model & Key Parameters
         Model        Output power  Output voltage  Output current Outline size Efficiency  Safe approval
PF-20-12  20W 12V 1.6A 142*30*22mm 82% CE
PF-36-12 36W 12V 3A 150*43*32mm 82% CE
PF-60-12 60W 12V 5A 166*43*33mm 83% CE
PF-75-12 75W 12V 6.25A 166*43*33mm 82% CE
PF-100-12 100W 12V 8.3A 192*52*37mm 82% CE
Electrical Features
    Input voltage   100V-240V
   Lifetime   >3Years
    Input frequency   50-60Hz
   Waterproof grade   IP67
    In-rush current   Cold boot:230V 20A
   Working temperature   -20℃~+50℃
    Power factor   0.6
   Storage temperature   -40℃~+85℃
    Ripple & Noise   ≤Vout x 1%
   Working relative humidity   10%-100%
    Protection   OLP  SCP  OVP  OTP
   Storage relative humidity   5%-95%
