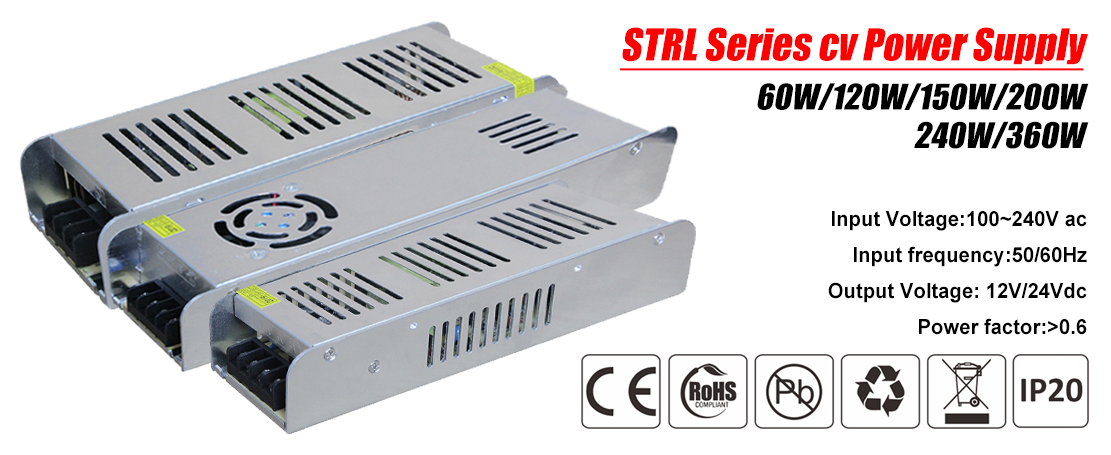

STRL Series 120W LED Power Supply

STRL Series
  • 120W

  • DongDaHua

  • 8504401400

Quantity:

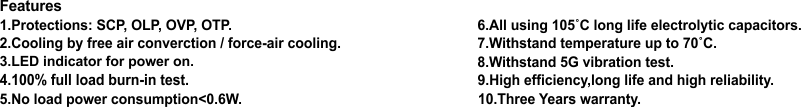

4-0-6
Model & Key Parameters
         Model        Output power  Output voltage  Output current Outline size Efficiency  Safe approval
STRL-60-12  60W 12V 5A 126*46*32mm 80% CE
STRL-120-12 120W 12V 10A 188*47*36mm 80% CE
STRL-150-12 150W 12V 12.5A 200*58*39mm 80% CE
STRL-200-12 200W 12V 16.5A 223*68*40mm 80% CE
STRL-240-12 240W 12V 20A 223*68*40mm 80% CE
STRL-360-12 360W 12V 30A 223*68*40mm 80% CE
Electrical Features
    Input voltage   176V-264V
   Lifetime   >2Years
    Input frequency   47-63Hz
   Waterproof grade   IP20
    In-rush current   Cold boot:230V 20A
   Working temperature   -20℃~+50℃
    Power factor   0.6
   Storage temperature   -40℃~+85℃
    Ripple & Noise   ≤Vout x 1%
   Working relative humidity   10%-100%
    Protection   OLP  SCP  OVP  OTP
   Storage relative humidity   5%-95%
