240W
DongDaHua
8504401400
Quantity: | |
---|---|

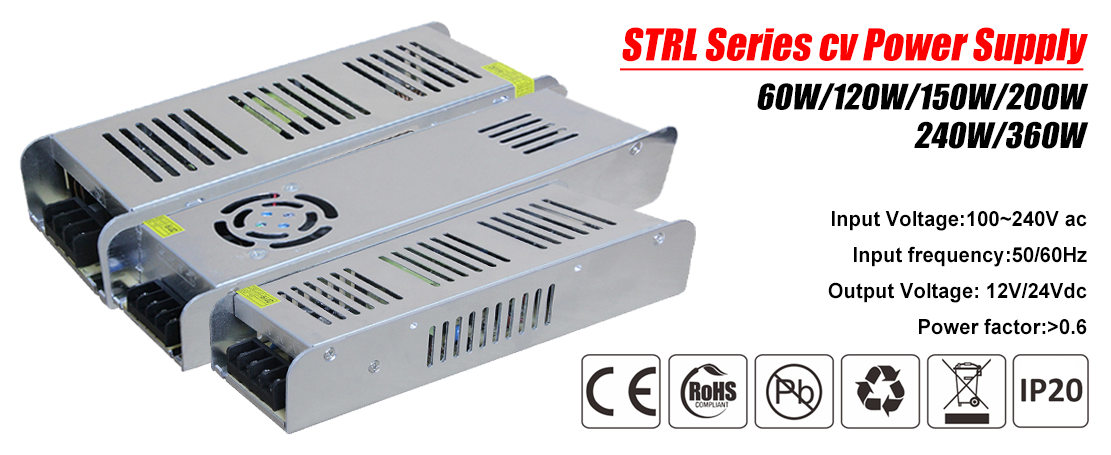

Model | Output power | Output voltage | Output current | Outline size | Efficiency | Safe approval |
STRL-60-12 | 60W | 12V | 5A | 126*46*32mm | 80% | CE |
STRL-120-12 | 120W | 12V | 10A | 188*47*36mm | 80% | CE |
STRL-150-12 | 150W | 12V | 12.5A | 200*58*39mm | 80% | CE |
STRL-200-12 | 200W | 12V | 16.5A | 223*68*40mm | 80% | CE |
STRL-240-12 | 240W | 12V | 20A | 223*68*40mm | 80% | CE |
STRL-360-12 | 360W | 12V | 30A | 223*68*40mm | 80% | CE |
Input voltage | 176V-264V | | Lifetime | >2Years |
Input frequency | 47-63Hz | | Waterproof grade | IP20 |
In-rush current | Cold boot:230V 20A | | Working temperature | -20℃~+50℃ |
Power factor | 0.6 | | Storage temperature | -40℃~+85℃ |
Ripple & Noise | ≤Vout x 1% | | Working relative humidity | 10%-100% |
Protection | OLP SCP OVP OTP | | Storage relative humidity | 5%-95% |
Model | Output power | Output voltage | Output current | Outline size | Efficiency | Safe approval |
STRL-60-12 | 60W | 12V | 5A | 126*46*32mm | 80% | CE |
STRL-120-12 | 120W | 12V | 10A | 188*47*36mm | 80% | CE |
STRL-150-12 | 150W | 12V | 12.5A | 200*58*39mm | 80% | CE |
STRL-200-12 | 200W | 12V | 16.5A | 223*68*40mm | 80% | CE |
STRL-240-12 | 240W | 12V | 20A | 223*68*40mm | 80% | CE |
STRL-360-12 | 360W | 12V | 30A | 223*68*40mm | 80% | CE |
Input voltage | 176V-264V | | Lifetime | >2Years |
Input frequency | 47-63Hz | | Waterproof grade | IP20 |
In-rush current | Cold boot:230V 20A | | Working temperature | -20℃~+50℃ |
Power factor | 0.6 | | Storage temperature | -40℃~+85℃ |
Ripple & Noise | ≤Vout x 1% | | Working relative humidity | 10%-100% |
Protection | OLP SCP OVP OTP | | Storage relative humidity | 5%-95% |
